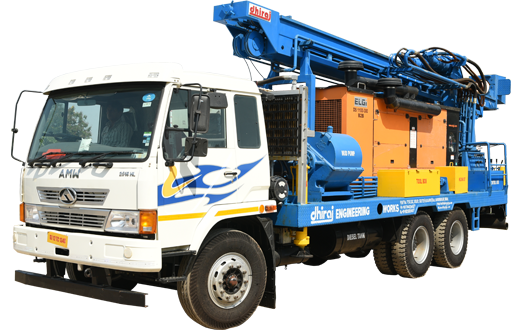

Truck Mounted Drilling Rig DEW 1000
DEW-1000 is very hot in water well sector drilling industries. Specially in African countries. Most of African countries they have water level near around 300mtr. For this it required 15? feet (3 mtr) drill pipe or 20? feet (6 mtr) drill pipe. This product model have two options are available one is single truck mounted with truck engine drive hydraulic operation and second is two truck mounted deck engine drive hydraulic operation. By using DEW-1000 you can drill up to max. 1200 feet (370mtr) in 4? (100mm) to 10? (250mm) drilling diameter.

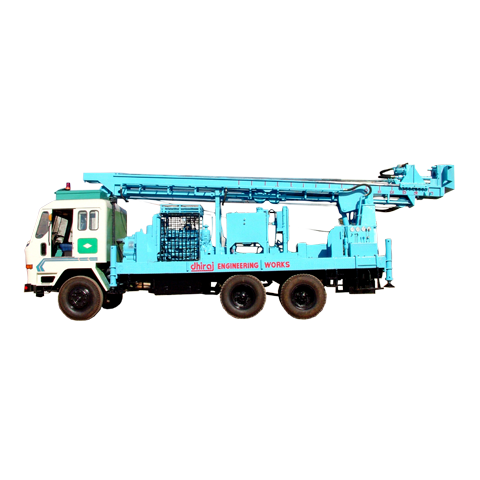

Truck Mounted Drilling Rig DEW 1000

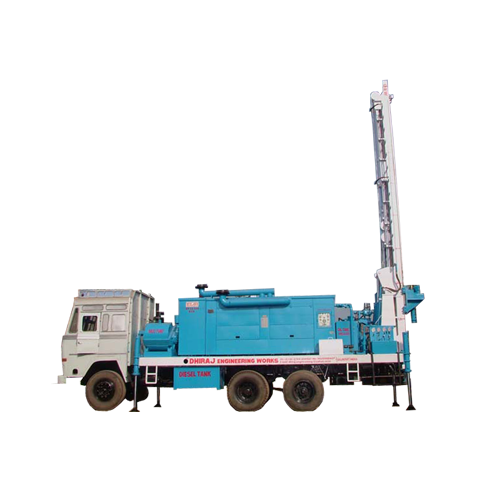

Truck Mounted Drilling Rig DEW 1000
Truck Mounted Drilling Rig DEW 1000
Truck Mounted Drilling Rig DEW 1000
| Depth: | 6 1/2" dia bore holes to a depth of 300mtr(1000ft) using 4.5" drill rod |
|---|---|
| 10" dia bore holes to a depth of 150mtr (500ft) using 4.5" drill rod | |
| Prime mover: | Through PTO drive from truck engine or seprate deck engine |
| Mast: | 10" 'C' channel box type structure |
| Max capacity- 17 tons(37400lbs) | |
| Height - 8.2 mtr (27ft) | |
| Rod handling 4.5 mtr (15ft) | |
| Rod changer with auxillary winch: | Manually operated three rod changer with 2000kgs capacity pull up winch to carry drill pipes, hammer & other tools |
| Break out: | To open the drill joints hydraulic break out cylinder of 300mm stroke will be provided |
| Hydraulic system: | Hydraulic pressure : 221 kg/ cm2 (3000psi) |
| Pull up speed : 37mtr / min (122ft / min) | |
| Pull up force : 8591kg (18900 lbs) | |
| Pull down force : 5897kgs (12973 lbs) | |
| Pull down speed : 53 mtr/min (175ft / min) | |
| Reeving ration: | 1:3 |
| Rotary head: | Miximum torque 303kg-mtrs(26400 inch-lbs) |
| Rotary head speed: | 0 To 100 |
| Water injection pump: | 80lpm water pump driven by hydraulic motor |
| Optional attachment: | Hydraulic motor drive mud pump, welding machine, diesel or oil filling pump |
| Suitable compressor: | 900cfm@200psi; 1100cfm@300psi |
| Jack: | Four hydraulic leveling jack for proper levling drill point with seprate lever |
